NRS Frame Anchor System with 2:1
Effortlessly deploy and retrieve your anchor from the comfort of your seat with the NRS Frame Anchor System with 2:1. The mechanical advantage system reduces the physical effort required, while the versatile design accommodates rafting frame bars, drop rails, and cataraft yokes. Quick-mounting construction keeps setup simple so you can focus on your adventure. Ideal for multi-craft applications where reliability and ease of use matter.
Features

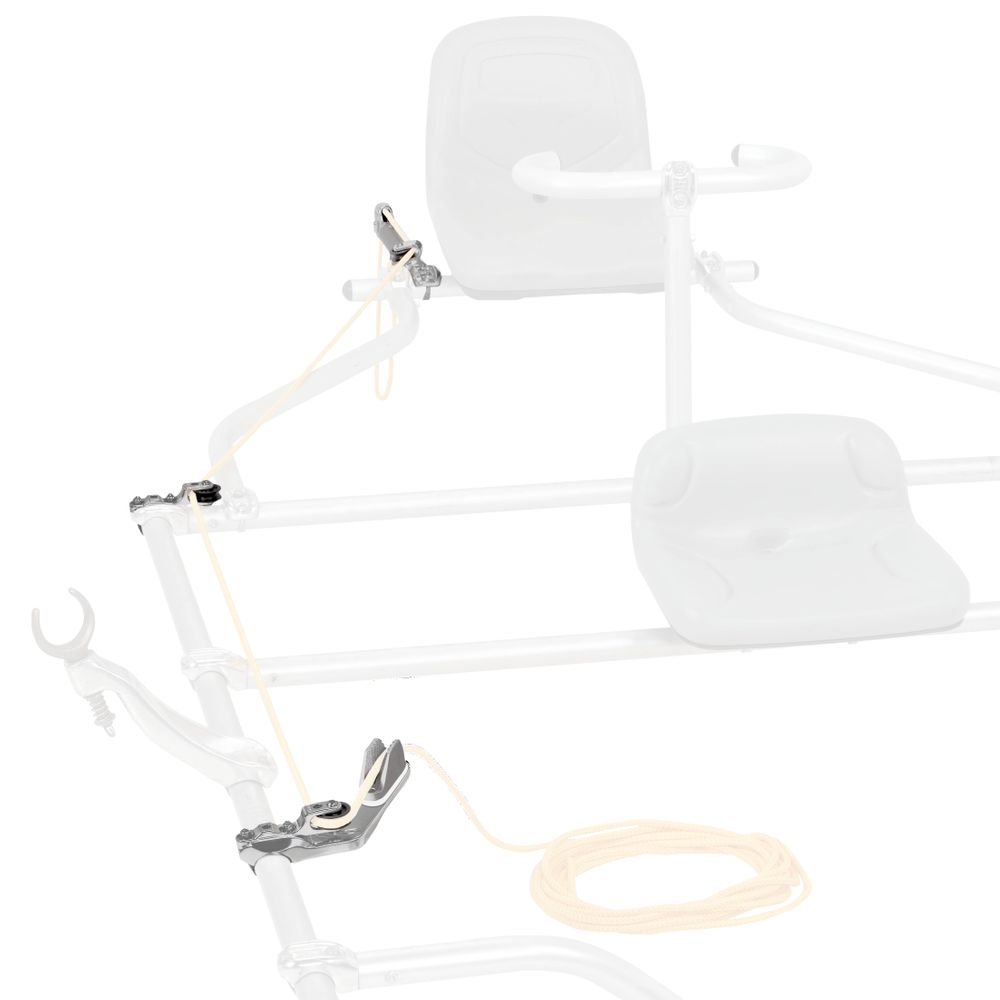

- Three main components, a remote bracket with jam cleat and intermediate pulley, create a 2:1 mechanical advantage, halving anchor weight when dropped or lowered.
- The stern pulley on the mast is slotted to allow for angle adjustment depending on the amount of kick the craft has. It is preset for maximum kick. For a flatter angle, loosen the bolt and nut and adjust to the desired angle and tighten.
- Includes standard U-bolt and oversized U-bolt with nuts and washers.

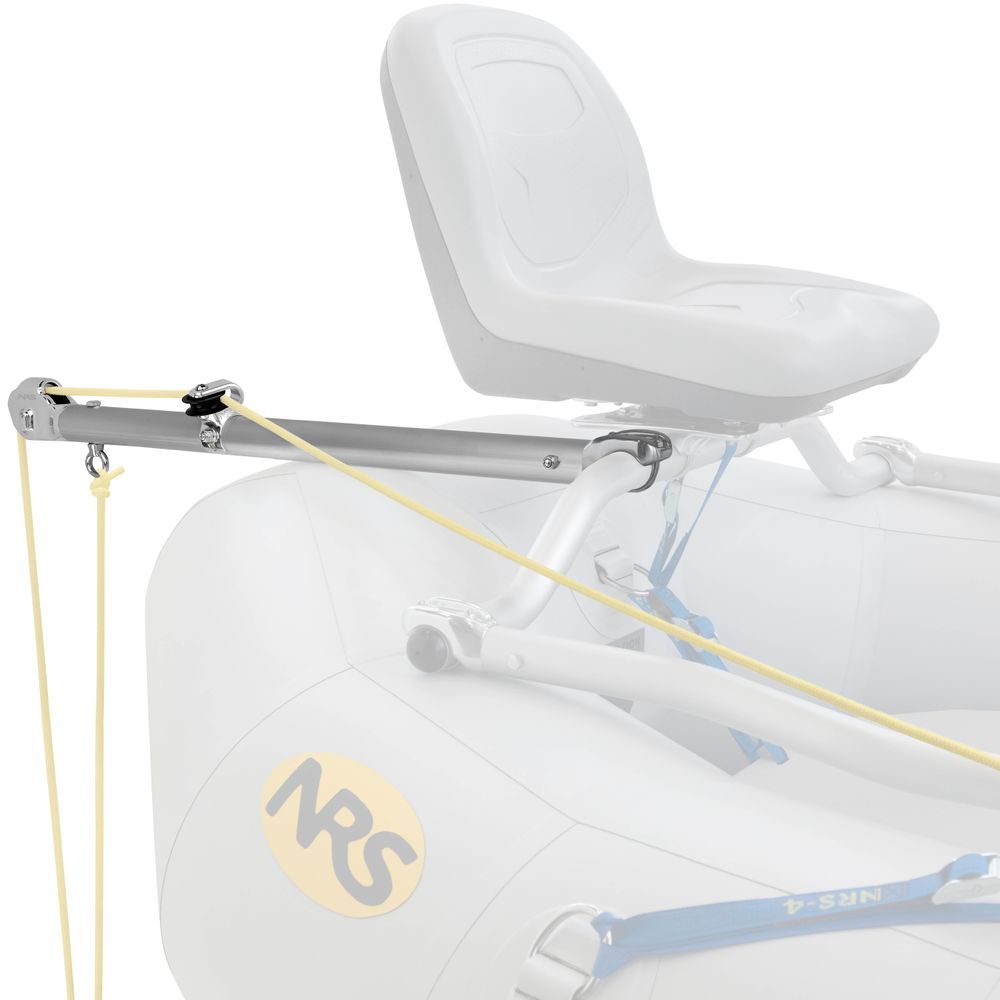

- The 31" Long Mast with Forged LoPro Anchor System is a great addition to the Dodger Stern Seat Mount (Item # 92016.03) The extra length extends the anchor comfortably past the stern of your Otter Fishing Dodger XL Raft. Includes the Anchor Control System and Intermediate Pulley for Forged LoPro.
- Unlike previous anchor systems, this system works with both the older cast aluminum LoPros and current forged LoPros. The oversized U-bolt works best with the forged LoPros, while the standard U-bolt is best for the cast aluminum.
- The intermediate pulley (Item # 94047.01) is designed to nest on top of forged LoPros. For cast LoPro frames, simply U-bolt the intermediate to the siderail.
- Rope and anchor sold separately.
- We recommend 3/8" double braided nylon anchor rope.
